Officine Facchini

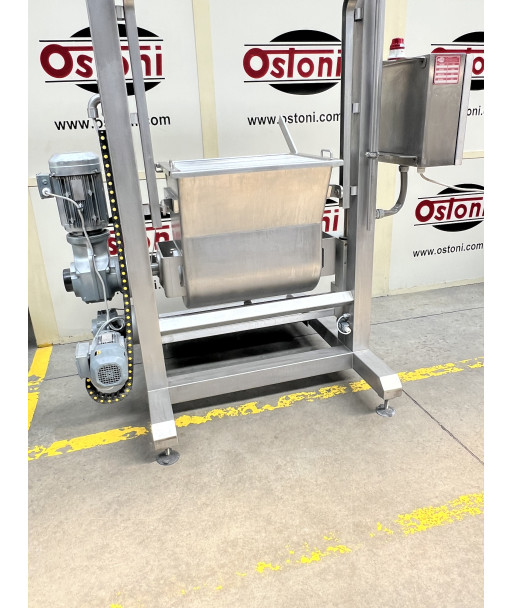

Lifting kneading machine model IMP80

It is composed as follows:

- Stainless steel frame

- Kneading machine tank motor Hp 4 for the shaft with blades

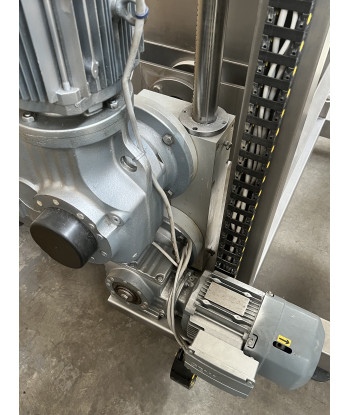

- The tank raises on stainless steel rack columns, with a Hp 2 self-braking motor

- Removable seal flanges for easier cleaning

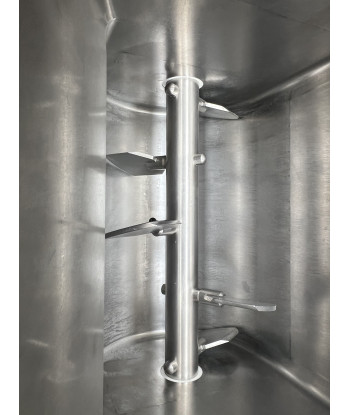

- Shaft mounted on ball bearings.

Electrical equipment 220 / 400 V - 3 phases - 50 / 60 Hz., completely rebuilt, guaranteed 1 year, CE and USDA approved.

**********

Operation of the Tilting Mixer

The tilting mixer is an industrial machine specifically designed for preparing dough intended for pasta production. Its operation is structured in several sequential phases:

• Loading Phase

Processing is carried out through shaped and appropriately angled blades to distribute the dough uniformly within the tilting mixer bowl. With the bowl positioned in the lower part of the machine and the protective grid open, the operator proceeds to load the raw materials. These include various types of flour, semolina, eggs, water, and other ingredients necessary for the specific dough recipe.

• Mixing Phase

Once loading is completed, the protective grid is closed to ensure safety during operation. At this point, the mixing phase begins, which generally lasts about 15 minutes. During this period, the shaped blades rotate inside the bowl, uniformly blending all ingredients until obtaining a homogeneous dough of the desired consistency.

• Discharge Phase

At the end of mixing, the protective grid is reopened and the tilting mechanism is activated. In the final phase, the bowl, sliding on two guide racks, rises vertically to tip everything into the next machine in the production line, which can be an automatic cylinder, a pasta press, or a sheeting machine.

This automatic tilting system optimizes production times by eliminating the need for manual dough transfers and ensuring continuous flow in the pasta production line.

**********

Guaranteed 1 Year !!!
